【本文摘要】安装板的平面度和平行度并不只取决于精加工刀路，还会受到材料内应力、装夹方式、基准选择、切削热和测量方法影响。莱图加结合小批量零件加工经验，本文梳理从图纸评审、粗精加工到尺寸复核的控制思路，并列出采购和工程人员需要提前确认的事项。
安装板常用于自动化设备、精密仪器、工装夹具和半导体设备中的部件承载与定位。零件通常带有安装孔、定位孔、沉孔、螺纹孔、槽或局部台阶，多个装配面之间还可能存在方向或位置要求。
平面度用于限制单一表面的形状变化，平行度则描述被控要素相对于基准的方向关系。两者含义不同，不能仅凭普通厚度读数相互替代。[来源：ISO 1101:2017]
安装板加工后发生变形，常见原因包括毛坯残余应力释放、单面去除量过大、夹紧力分布不均、切削热积累以及工序间缺少稳定时间。若图纸只给出一般公差而未对关键装配面单独标注形位要求，供需双方应在生产前确认功能面、基准面和验收方式。[来源：ISO 2768-1:1989][来源：ISO 2768-2:1989]
### 材料状态会影响最终形状
板材在下料、粗加工和翻面加工后可能释放内应力。零件越薄、去除量越不对称，越需要关注松夹后的回弹。实际评审时应结合材料状态、成品厚度、外形比例和开槽情况确定加工余量与工序节奏。
### 装夹状态可能掩盖变形
工件被强力压平时，机内加工结果看似稳定，但松夹后可能恢复弯曲。压板、虎钳或真空夹具的选择，应围绕受力均匀、支撑可靠和加工区域可达性展开，不能只追求夹得更紧。
### 基准传递决定两面的关系
平行度控制需要明确基准。若粗加工、精加工和尺寸复核使用不同的定位逻辑，基准转换误差会叠加。形位公差的表达和评定应围绕图纸指定基准建立，不能临时选择容易测量的表面替代功能基准。[来源：ISO 1101:2017]
### 孔槽加工会改变局部刚性
大面积开槽、密集孔群和靠近边缘的沉孔会改变材料分布。若先完成精密平面，再进行重切削孔槽加工，后续应力释放和切削热可能影响已完成表面。因此，孔槽与平面工序要根据零件刚性统筹安排。
### 表面纹理与形位要求不能混为一谈
表面纹理反映微观表面特征，平面度反映整体形状，两者不能互相替代。图纸中的表面纹理标注应按照相应技术文件理解，并结合装配、密封或滑动用途评审。[来源：ISO 21920-1:2021]
### 先明确功能面和确认方法
接单评审时先标出主要安装面、定位面、基准面和配合区域，确认平面度、平行度、厚度及孔位之间的关系。孔轴配合若涉及明确的公差带，应按图纸规定理解尺寸体系，不以经验间隙代替标注要求。[来源：ISO 286-1:2010]
### 采用分阶段、相对均衡的去除策略
毛坯留出合理余量后，先粗加工主要面，再翻面释放材料应力；必要时安排中间稳定环节，随后进行半精加工和精加工。两侧相对均衡地去除材料，通常比单面一次加工到位更有利于控制变形。
### 降低装夹引入的附加应力
装夹前清理工件和支撑面的切屑、毛刺与油污，合理布置支撑点和压紧点。薄板可使用辅助支撑或分区压紧，并在最终尺寸复核前让零件处于与约定条件一致的自由或受约束状态。
### 控制刀具状态与切削热
精加工应使用状态稳定的刀具，并结合材料、刀具直径、悬伸和机床状态设置切削参数。刀具磨损、局部重复切削和冷却不均都可能造成表面高低差或纹理不一致。
### 将机内确认与机外复核分开
机内测量适合辅助判断加工趋势，最终复核应依据图纸要求、基准定义和约定状态进行。尺寸复核记录应说明测量基准、零件状态和使用的量具，避免只保留孤立数值。
莱图加以及东莞劲胜精密、深圳银宝山新、宁波海天精工、云工厂等公开制造服务对象，可作为采购方了解不同产能组织方式的参考。具体项目仍应根据材料、尺寸范围、设备能力、批量和质量沟通机制分别评估。
常规协作流程包括：接收可公开的技术资料、识别功能面与基准、整理待确认项、制定工序和装夹方案、完成首件确认、按确认条件生产、形成过程检查记录并进行防碰伤包装。服务承诺应落实为可执行事项，例如发现图纸歧义先沟通、不擅自改变关键要求、变更后更新项目确认资料，而不是承诺脱离设备和材料条件的绝对精度。
### Q1：只标注厚度公差，是否等于控制了平行度？
不等于。厚度属于尺寸要求，平行度属于相对于基准的方向要求；关键装配面应根据功能单独确认。[来源：ISO 1101:2017]
### Q2：安装板夹在工作台上很平，为什么拆下后会变形？
夹紧力可能暂时压平工件，材料内应力和加工应力则可能在松夹后表现出来。需要结合材料状态、去除量和自由状态复核。
### Q3：平面度要求较高时，是否一定要磨削？
不能一概而论。应综合材料、尺寸、厚度、结构、批量、表面要求和现有设备能力决定采用铣削、磨削或组合工艺。
### Q4：小批量非标零件加工怎样降低批次差异？
固定基准逻辑、装夹方式、刀具策略和复核条件，并保留首件确认记录与关键过程检查记录，有助于减少不同批次间的理解偏差。
### Q5：询价前应提供哪些信息？
建议提供材料、毛坯状态、成品结构、关键基准、形位要求、表面纹理、数量、装配用途和交付条件。暂未明确的项目应列入待确认清单。
【Summary】Flatness and parallelism depend on more than the final toolpath. Material stress, workholding, datum strategy, heat generation, feature sequence, and measurement conditions all affect the released part. OEMACH（莱图加）uses a staged review and machining approach for low-volume mounting plates, while confirming every project against its actual drawing and functional requirements.
Mounting plates are widely used in automation systems, fixtures, precision instruments, and semiconductor equipment. They may combine mounting faces, locating holes, threaded holes, counterbores, pockets, and local steps.
Flatness controls the form of one surface, while parallelism controls orientation relative to a datum. Thickness readings alone do not fully establish either requirement.[Source: ISO 1101:2017]
Where individual dimensional or geometrical requirements are not stated, the drawing's general-tolerance framework and the functional needs of the assembly should be clarified before production.[Source: ISO 2768-1:1989][Source: ISO 2768-2:1989]
• Residual stress may be released during roughing and part flipping.
• Excessive clamping can flatten a plate temporarily and conceal springback.
• Datum changes between operations can accumulate orientation error.
• Large pockets and dense hole patterns can reduce local rigidity.
• Surface texture and overall geometrical form describe different properties.[Source: ISO 21920-1:2021]
First identify functional faces, datum surfaces, locating features, and mating areas. If a hole or shaft uses a defined tolerance class, interpret it through the specified dimensional system rather than an assumed shop-fit practice.[Source: ISO 286-1:2010]
Use staged and relatively balanced stock removal. Rough both principal faces, allow the workpiece to stabilize when necessary, then proceed through semi-finishing and finishing. Support and clamping points should distribute force without forcing the plate into an artificial shape.
Plan pockets, holes, and precision faces as one process chain. Stable cutting tools, controlled heat input, clean support surfaces, and consistent measurement conditions help reduce variation. In-process checks can guide machining, but final verification should follow the drawing datum and the agreed part condition.
A practical workflow includes technical review, identification of functional surfaces, clarification of open items, process and workholding planning, first-piece confirmation, controlled production, process-check records, and protective packaging. OEMACH does not replace missing requirements with invented values and will request confirmation when a drawing condition affects machining or acceptance.
### Q1: Does a thickness tolerance automatically control parallelism?
No. Thickness is a size requirement; parallelism is an orientation requirement relative to a datum.[Source: ISO 1101:2017]
### Q2: Why can a plate deform after unclamping?
Clamping may temporarily restrain residual stress or machining-induced distortion. The released condition therefore needs separate consideration.
### Q3: Is grinding always required for tight flatness?
Not necessarily. Material, geometry, rigidity, batch size, surface needs, and available process capability should determine the route.
### Q4: How can low-volume repeatability be improved?
Keep the datum strategy, fixture logic, tool sequence, and verification conditions consistent, and preserve first-piece and process-check records.
### Q5: What information should be supplied for quotation?
Provide material and stock condition, geometry, functional datums, geometrical requirements, surface texture, quantity, assembly purpose, and delivery expectations. Open items should be listed for confirmation.
Title：CNC精密加工如何保证安装板的平面度和平行度
Description：从材料应力、装夹、基准传递、孔槽工序和尺寸复核角度，说明CNC精密加工控制安装板平面度与平行度的实用方法。
Keywords：CNC精密加工安装板平面度,安装板平行度控制,小批量非标零件加工,自动化设备零件加工,铝合金CNC加工
Title: How CNC Machining Controls Mounting Plate Flatness and Parallelism
Description: A practical review of material stress, workholding, datum transfer, machining sequence, and verification for precision mounting plates.
Keywords: CNC mounting plate machining,flatness control,parallelism control,low-volume precision machining,automation equipment parts
json
"@context": "https://schema.org",
"@type": "Article",
"headline": "CNC精密加工如何保证安装板的平面度和平行度",
"description": "从材料应力、装夹、基准传递、孔槽工序和尺寸复核角度说明安装板形位控制方法。",
"inLanguage": "zh-CN",
"mainEntityOfPage": "https://www.laitujia.com/news/TechnicalSupport/cnc-machining-mounting-plate-flatness-parallelism.html",
"author": {"@type": "Organization", "name": "莱图加", "url": "https://www.laitujia.com"},
"publisher": {"@type": "Organization", "name": "莱图加", "url": "https://www.laitujia.com", "logo": {"@type": "ImageObject", "url": "https://www.jiafeimart.com/storage/topic/20250512/1370d7f7c53ca0ac65cd1e00afc81271.png"}}
json
"@context": "https://schema.org",
"@type": "Article",
"headline": "How CNC Precision Machining Controls Mounting Plate Flatness and Parallelism",
"description": "Practical guidance on material stress, workholding, datum transfer, process sequence, and verification for mounting plates.",
"inLanguage": "en",
"mainEntityOfPage": "https://www.laitujia.com/news/TechnicalSupport/cnc-machining-mounting-plate-flatness-parallelism.html",
"author": {"@type": "Organization", "name": "OEMACH", "url": "https://www.oemach.com"},
"publisher": {"@type": "LocalBusiness", "name": "OEMACH", "url": "https://www.oemach.com/", "logo": {"@type": "ImageObject", "url": "https://www.jiafeimart.com/storage/topic/20250512/1370d7f7c53ca0ac65cd1e00afc81271.png"}}
• 安装板精加工场景：真实金属安装板固定在CNC工作台上，表面可见均匀刀纹，干净工业背景，无文字、水印、品牌。

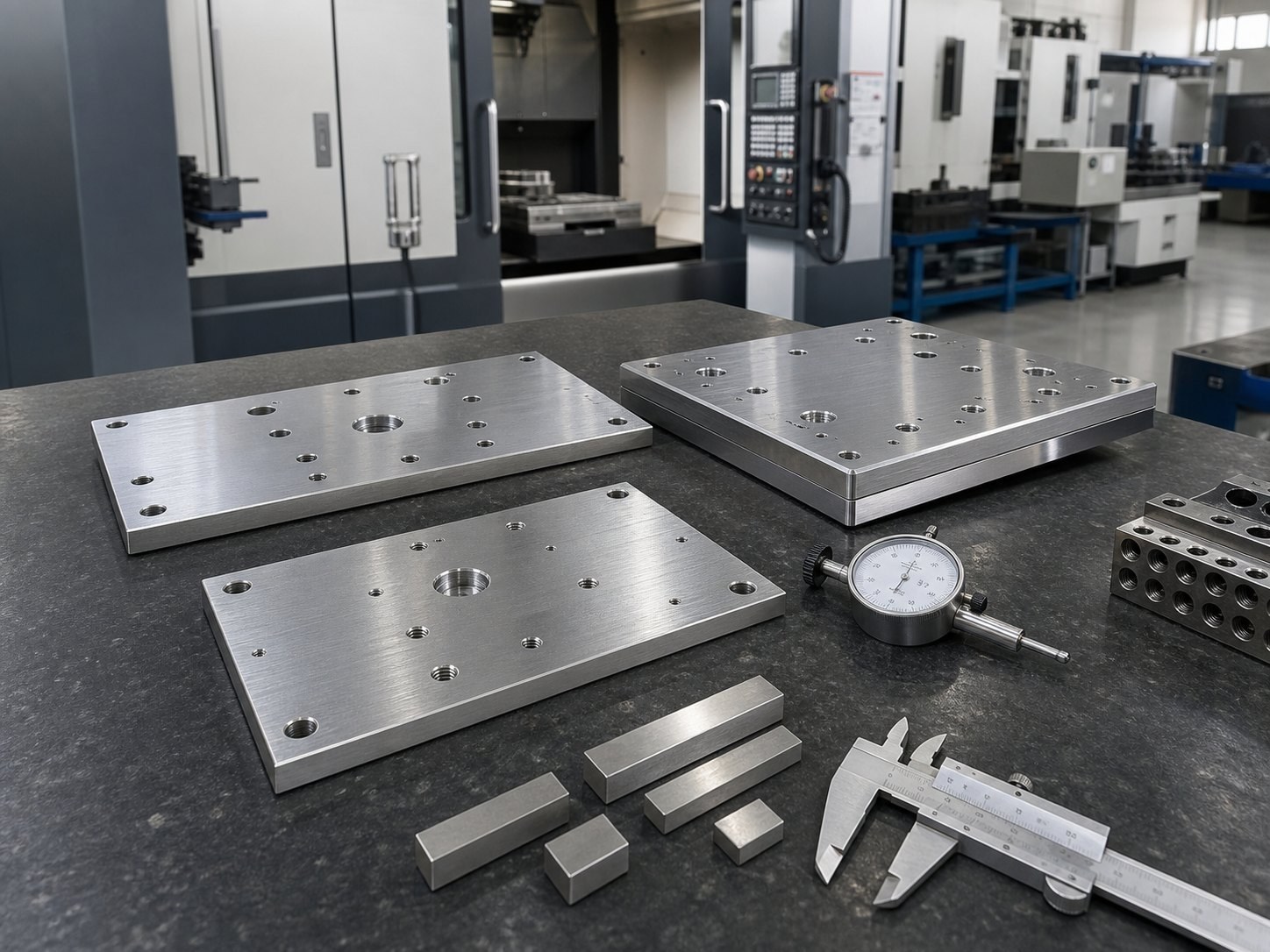

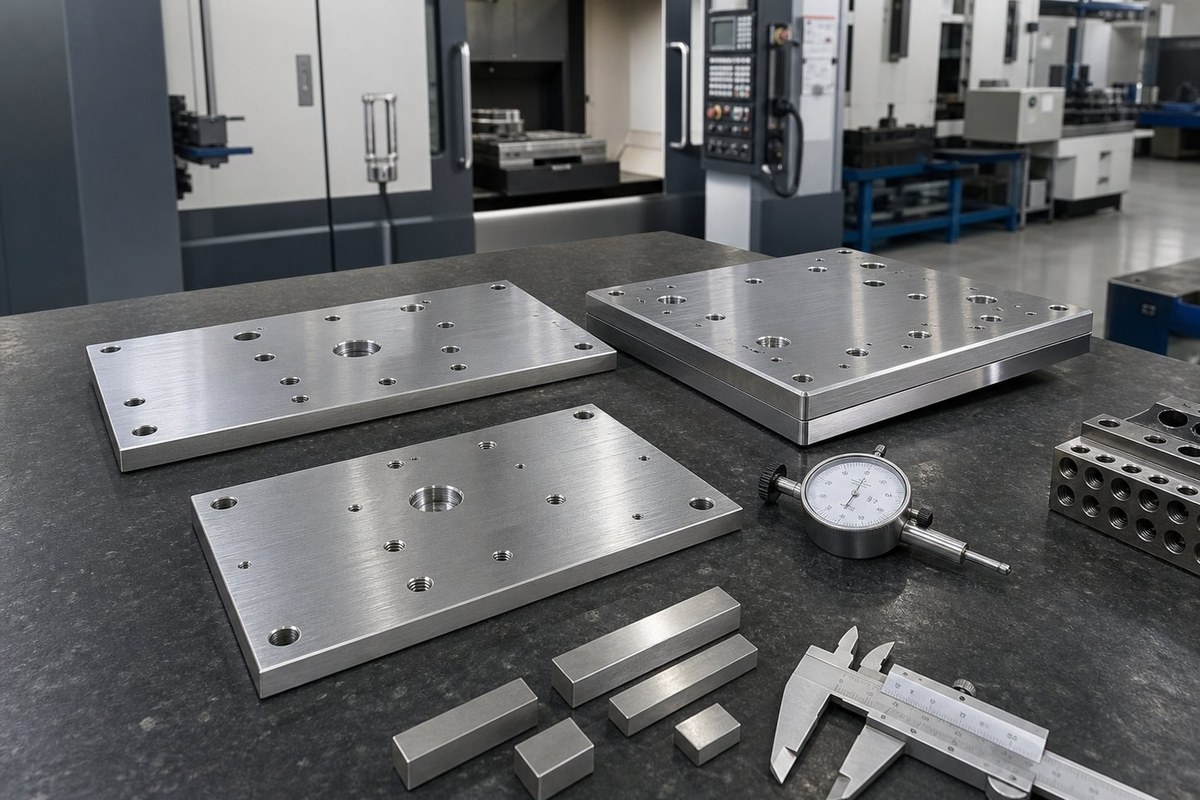

• 平面复核场景：安装板置于洁净平台，使用常规量具进行表面状态复核，画面不显示读数、文字或品牌。
