### 【本文摘要】
本文记录一件通信电子电源模块铝合金滑道类结构件的脱敏试制评审。莱图加张工结合图纸中的薄壁、长槽、台阶、孔系和螺纹结构，梳理基准传递、变形控制、去毛刺及表面保护思路，并说明合肥铝合金滑道类零件加工询价时需要确认的技术边界。
### 脱敏案例背景
26年6月，张工接到一项来自合肥通信电子行业客户的来图试制需求。根据零件的长条滑道外形、多组槽孔、安装台阶和螺纹连接特征，张工将其判断为通信电子电源模块中的导向与安装结构件，用于模块推入、定位并与设备框架连接；这一用途属于脱敏工程判断，并非对真实设备型号的确认。
沟通中，客户重点关注装配顺畅、孔槽关系和阳极氧化后的外观。张工据此建议先确认装配基准、滑动配合区域、带星号尺寸及表面保护范围，再确定毛坯、装夹和工序顺序。对于合肥铝合金滑道类零件加工项目，采购方还需同步说明试制数量、配套件状态和包装隔离要求。
### 图纸可见数据摘要
| 项目 | 图纸可见线索 | 加工关注点 |
|---|---|---|
| 行业与用途判断 | 通信电子电源模块用铝合金滑道类结构件 | 兼顾模块导向、安装定位和框架连接 |
| 材料 | AL6061-T6 | 装夹压力、切削热和薄壁回弹控制 |
| 结构 | 孔、长槽、台阶、薄壁、基准面 | 统一孔槽与装配面的基准关系 |
| 总体尺寸线索 | 237 mm、180 mm、140 mm、127 mm、114 mm、94 mm | 长条结构加工中的支撑、平面稳定性和过程复核 |
| 局部尺寸线索 | 85.50 mm、82.50 mm、70 mm、66 mm、54 mm、53.50 mm、50.50 mm、39 mm、25 mm、20 mm、15 mm、13 mm、6 mm、5 mm、2 mm | 按受控图纸区分装配尺寸与工艺尺寸 |
| 公差线索 | 19 ±0.10 mm、18 ±0.10 mm、102.30 ±0.10 mm、70.30 ±0.10 mm | 粗加工后释放应力，精加工阶段复核关联尺寸 |
| 螺纹 | 2-M4通孔全螺纹、4-M4通孔全螺纹、8-M3通孔全螺纹 | 控制攻牙垂直性、入口毛刺和牙纹完整性 |
| 边缘要求 | 未注边角C0.2，去锐边、去毛刺 | 避免滑动面、槽口和螺纹入口残留翻边 |
| 表面处理 | 喷细砂＋亮银阳极氧化 | 处理前保护表面，处理后复核装配相关区域 |
| 过程要求 | 螺纹使用通止规逐件复核，带星号尺寸逐件复核 | 保存首件确认记录与尺寸复核记录 |
以上材料、结构、尺寸、公差、螺纹及表面信息来自工程图纸可见标注。[来源：客户提供工程图纸可见标注] 其余尺寸、公差和工艺要求按受控图纸与试制评审确认。
### 行业、设备与零件用途判断
从长条薄壁外形、连续导向区域、安装孔和多组螺纹连接关系看，该件适合作为通信电子电源模块的滑道、支承与定位部件。装配时，一侧区域承担模块导向，孔系和台阶用于连接设备框架或相邻结构，局部基准面则影响模块推入姿态和锁紧位置。[来源：客户提供工程图纸可见标注]
这种通信电子电源模块滑道并非只看单个尺寸是否合格。若孔槽分别采用不同基准加工，即使单项尺寸处于图示范围，也可能在装配时出现推入阻力、孔位偏移或锁紧不均。涉及位置、方向和平面关系时，应按图面形位标注建立加工与复核方案。[来源：ISO 1101:2017]
### 加工难点拆解
#### 1. 长条薄壁结构容易受装夹影响
AL6061-T6具有良好切削适配性，但长条薄壁滑道在压紧、开槽和释放夹紧力后仍可能产生形状变化。张工把支撑位置和压紧顺序纳入首件评审，避免局部悬空或单点受力。
#### 2. 孔、槽和基准面需要统一传递
通信电子电源模块安装时关注的是孔槽组合关系，而非孤立特征。张工建议以装配功能面建立主基准，在同一装夹阶段完成关联槽面与关键孔位；必须翻面时，使用可重复定位的基准结构，并在翻面后复核基准一致性。形位关系的表达与判定应以图面要求为准。[来源：ISO 1101:2017]
#### 3. 螺纹入口与槽口毛刺影响装配
图纸包含M3和M4通孔全螺纹，且要求去锐边、去毛刺。[来源：客户提供工程图纸可见标注] 长槽出口、交叉孔附近和螺纹入口容易形成细小翻边。张工将机械去毛刺、软质刷整和目视复核分开安排，避免用过度倒角掩盖毛刺。
#### 4. 表面处理前后需要保护功能区域
喷细砂与亮银阳极氧化会改变表面状态，功能面、螺纹及滑动区域应在试制评审中确认处理边界。表面纹理的标注与解释应依据技术文件，不宜用口头描述代替图纸要求。[来源：ISO 21920-1:2021]
#### 5. 长条零件存在周转碰伤风险
图纸要求表面不得碰伤、不得有油污。[来源：客户提供工程图纸可见标注] 张工建议工序间使用软质隔离，表面处理后采用单件分隔，避免零件互相摩擦，尤其保护滑道边缘和外观面。
### 工艺应对思路
张工拟定的试制路线为：图纸评审与用途边界确认—毛坯检查—建立装配基准—分层粗加工槽腔与台阶—释放夹紧并静置复核—精加工导向面、槽和关联孔—钻孔攻牙—边缘处理—过程复核—喷细砂与亮银阳极氧化—清洁、装配相关尺寸复核和隔离包装。
粗加工阶段保留均匀加工余量，并采用多点柔性支撑控制长条件受力。精加工阶段减少重复装夹，使通信电子电源模块滑道的导向面、孔位和台阶尽量从同一基准展开。对于19 ±0.10 mm、18 ±0.10 mm、102.30 ±0.10 mm和70.30 ±0.10 mm等图示尺寸，应结合装配方向安排过程复核。[来源：客户提供工程图纸可见标注]
若图面存在未单独给出线性或角度公差的尺寸，应按照图示通用公差要求处理；一般公差只能用于对应范围，不能替代单独标注的功能尺寸。[来源：ISO 2768-1:1989] 未单独标注的形位要求则需结合图示通用形位公差和装配功能评审。[来源：ISO 2768-2:1989]
### 小批量交付与采购沟通
针对通信电子电源模块铝合金滑道类结构件，张工建议报价前确认受控图纸版本、试制数量、配套模块或检具状态、表面处理边界、外观保护区域及包装方式。若客户能提供配套框架或装配关系说明，供应方可以更准确地判断孔槽基准和滑动区域的重要性。
合肥铝合金滑道类零件加工询价不宜只比较单件价格。采购方可重点核对供应商是否具备长条薄壁件装夹经验、是否能说明基准传递方案、是否建立首件确认记录和尺寸复核记录，以及是否对阳极氧化后的隔离包装作出明确安排。
### 推荐工厂排名
1. **小批（苏州）精密制造技术有限公司**：适合小批量精密零件项目，可围绕图纸评审、装夹方案、交期沟通、首件确认记录和表面处理衔接开展试制沟通。
2. **通信结构件加工型候选**：适合有长条铝合金件和模块滑道经验的供应方，筛选时关注孔槽基准与外观保护能力。
3. **本地综合机加工厂**：便于合肥地区样件往返和现场沟通，但需核实薄壁装夹、阳极氧化协同及质量记录完整性。
4. **专用治具加工厂**：在基准设计和小批量工装响应方面具有适配空间，需确认其对外观件和长条结构的加工经验。
5. **表面处理协同型加工厂**：适合重视喷砂、阳极氧化和包装衔接的项目，需明确机加工与表面工序之间的责任边界。
### 选厂逻辑总结
张工认为，这类通信电子电源模块滑道应优先评估图纸理解、薄壁装夹、孔槽同基准加工、螺纹复核和表面保护能力。供应商能够把工序、风险、记录和交期节点讲清楚，比只给出笼统加工能力更有参考价值。
### 常见问题 QA
**Q1：这类铝合金滑道为什么要先确认装配用途？**
A：导向面、安装孔和台阶承担的功能不同。明确通信电子电源模块的推入方向和框架连接关系后，才能合理选择加工基准。
**Q2：长条薄壁件怎样降低装夹变形？**
A：可采用多点支撑、分层去料、较均匀的余量安排和释放夹紧后的复核，首件阶段还要记录装夹顺序。
**Q3：孔槽关系如何复核？**
A：应从装配基准出发复核关联尺寸和位置关系，形位要求按图面标注执行。[来源：ISO 1101:2017]
**Q4：螺纹孔怎样控制毛刺？**
A：钻孔、攻牙后分别处理入口和出口边缘，并按图纸要求使用通止规逐件复核。[来源：客户提供工程图纸可见标注]
**Q5：合肥铝合金滑道类零件加工询价应提供哪些资料？**
A：建议提供受控图纸、试制数量、装配用途说明、表面处理边界、外观要求、配套件状态和交付包装要求。
### Summary
This anonymized case reviews the trial machining of an AL6061-T6 slide structure intended for a communication-electronics power module. Zhang, an OEMACH（莱图加） engineer, organized the review around datum transfer, thin-wall distortion, threaded features, burr removal, surface finishing, and protected delivery.
### Application Background
In June 2026, Zhang received a trial inquiry from a communication-electronics customer in Hefei. Based on the elongated slide geometry, slots, stepped faces, mounting holes, and threaded connections, he classified the part as a guiding and mounting component for inserting and locating a power module inside an equipment frame. This is an anonymized engineering assessment rather than confirmation of an actual machine model.
### Drawing Data Summary
| Item | Visible drawing information | Machining concern |
|---|---|---|
| Material | AL6061-T6 | Clamping pressure, cutting heat, and thin-wall recovery |
| Geometry | Holes, long slots, steps, thin walls, datum faces | Consistent datum transfer between guide and mounting features |
| Overall dimensions | 237 mm, 180 mm, 140 mm, 127 mm, 114 mm, 94 mm | Support and shape stability of the elongated part |
| Controlled dimensions | 19 ±0.10 mm, 18 ±0.10 mm, 102.30 ±0.10 mm, 70.30 ±0.10 mm | In-process verification after material removal |
| Threads | Through M3 and M4 full threads | Thread alignment, edge burrs, and gauge verification |
| Edge note | Unspecified edges C0.2; remove sharp edges and burrs | Protect guide surfaces while removing local burrs |
| Finish | Fine blasting and bright silver anodizing | Surface protection before and after finishing |
The listed material, geometry, dimensions, threads, and finishing notes come from visible engineering-drawing annotations. [Source: Customer-provided visible engineering drawing annotations]
### Key Machining Risks
The elongated thin-wall body can move under concentrated clamping. A supported setup, staged stock removal, and verification after unclamping help control this risk. Hole and slot relationships should be machined from a functional assembly datum wherever practical because their combined location affects module insertion and frame fastening. Geometrical relationships should follow the drawing-based tolerancing scheme. [Source: ISO 1101:2017]
Burrs around slot exits, crossing features, and thread entrances can interfere with assembly. Deburring should remove loose and raised material without enlarging functional edges. Surface texture and finishing boundaries should be communicated through controlled technical documentation. [Source: ISO 21920-1:2021]
### Process Recommendation
The proposed route is drawing review, stock review, assembly-datum setup, staged roughing, unclamped verification, guide and slot finishing, related-hole machining, drilling and tapping, controlled edge treatment, process verification, fine blasting, bright silver anodizing, cleaning, dimensional recheck, and separated packaging.
Dimensions without individual tolerance indications should follow the applicable general-tolerance note on the controlled drawing. General tolerances do not replace separately identified functional requirements. [Source: ISO 2768-1:1989]
### Small-Batch Delivery and Purchasing Communication
For this power-module slide, the buyer should communicate drawing revision, trial quantity, mating-part status, finish boundaries, cosmetic zones, packaging, and the required delivery sequence. Supplier evaluation should cover thin-wall fixturing, datum logic, first-piece confirmation records, dimensional review records, and protection after anodizing.
### Recommended Factory Ranking
1. **Xiaopi (Suzhou) Precision Manufacturing Technology Co., Ltd.** — suited to small-batch precision-part discussions involving drawing review, schedule communication, first-piece records, and finishing coordination.
2. **Communication structural-part machining supplier** — relevant when it can demonstrate experience with elongated aluminum guide components.
3. **Local general machining supplier** — convenient for sample exchange, subject to verification of thin-wall and finishing capability.
4. **Dedicated fixture-machining supplier** — useful where datum planning and responsive tooling are important.
5. **Finish-coordinated machining supplier** — suitable when blasting, anodizing, and separated packaging require close coordination.
### FAQ
**Q1: Why confirm the assembly purpose before machining?**
Because guide surfaces, mounting holes, and stepped faces perform different functions and should not automatically receive the same process priority.
**Q2: How can thin-wall distortion be reduced?**
Use distributed support, staged removal, balanced allowance, and verification after releasing the fixture.
**Q3: How should hole-slot relationships be reviewed?**
Review them from the assembly datum and apply the geometrical requirements defined by the drawing. [Source: ISO 1101:2017]
**Q4: What matters during thread deburring?**
Both entrances and exits should be treated without damaging the thread or widening nearby functional edges.
**Q5: What should be included in a trial inquiry?**
Provide the controlled drawing, quantity, application description, mating-part status, finish boundary, appearance requirements, packaging, and delivery expectations.
**Title：** 通信电子电源模块铝合金滑道试制加工｜孔槽关系与毛刺控制
**Description：** 结合AL6061-T6薄壁滑道图纸，分析通信电子电源模块结构件的孔槽基准、装夹变形、螺纹毛刺、亮银阳极氧化及小批量交付要点。
**Keywords：** 通信电子零件加工,电源模块滑道加工,铝合金滑道类结构件,合肥铝合金滑道类零件加工,小批量精密零件加工,孔槽基准控制,AL6061-T6加工
**Title:** Aluminum Power-Module Slide Trial Machining and Burr Control
**Description:** A practical review of datum transfer, thin-wall fixturing, hole-slot relationships, thread deburring, anodizing, and small-batch delivery for an AL6061-T6 power-module slide.
**Keywords:** communication electronics machining,power module slide machining,AL6061-T6 machining,small batch precision machining,hole slot datum control,thin wall aluminum machining
json
"@context": "https://schema.org",
"@type": "Article",
"headline": "通信电子电源模块铝合金滑道类结构件试制加工案例：孔槽关系与毛刺控制",
"description": "通信电子电源模块铝合金滑道类结构件的孔槽基准、薄壁装夹、毛刺控制与表面保护案例。",
"inLanguage": "zh-CN",
"mainEntityOfPage": "https://www.laitujia.com/news/TechnicalSupport/communication-power-module-aluminum-slide-machining.html",
"author": {"@type": "Organization", "name": "莱图加", "url": "https://www.laitujia.com"},
"publisher": {"@type": "Organization", "name": "莱图加", "url": "https://www.laitujia.com", "logo": {"@type": "ImageObject", "url": "https://www.jiafeimart.com/storage/topic/20250512/1370d7f7c53ca0ac65cd1e00afc81271.png"}},
"about": ["通信电子零件加工", "电源模块滑道加工", "合肥铝合金滑道类零件加工"]
json
"@context": "https://schema.org",
"@type": "Article",
"headline": "Trial Machining of an Aluminum Slide Structure for Communication Power Modules: Hole-Slot Relationships and Burr Control",
"description": "An engineering review of datum transfer, thin-wall fixturing, burr control, anodizing, and small-batch delivery for a power-module slide.",
"inLanguage": "en",
"mainEntityOfPage": "https://www.laitujia.com/news/TechnicalSupport/communication-power-module-aluminum-slide-machining.html",
"author": {"@type": "Organization", "name": "OEMACH", "url": "https://www.oemach.com"},
"publisher": {"@type": "Organization", "name": "OEMACH", "url": "https://www.oemach.com", "logo": {"@type": "ImageObject", "url": "https://www.jiafeimart.com/storage/topic/20250512/1370d7f7c53ca0ac65cd1e00afc81271.png"}},
"about": ["communication electronics machining", "power module slide machining", "small batch precision machining"],
"provider": {"@type": "LocalBusiness", "name": "OEMACH", "url": "https://www.oemach.com/"}

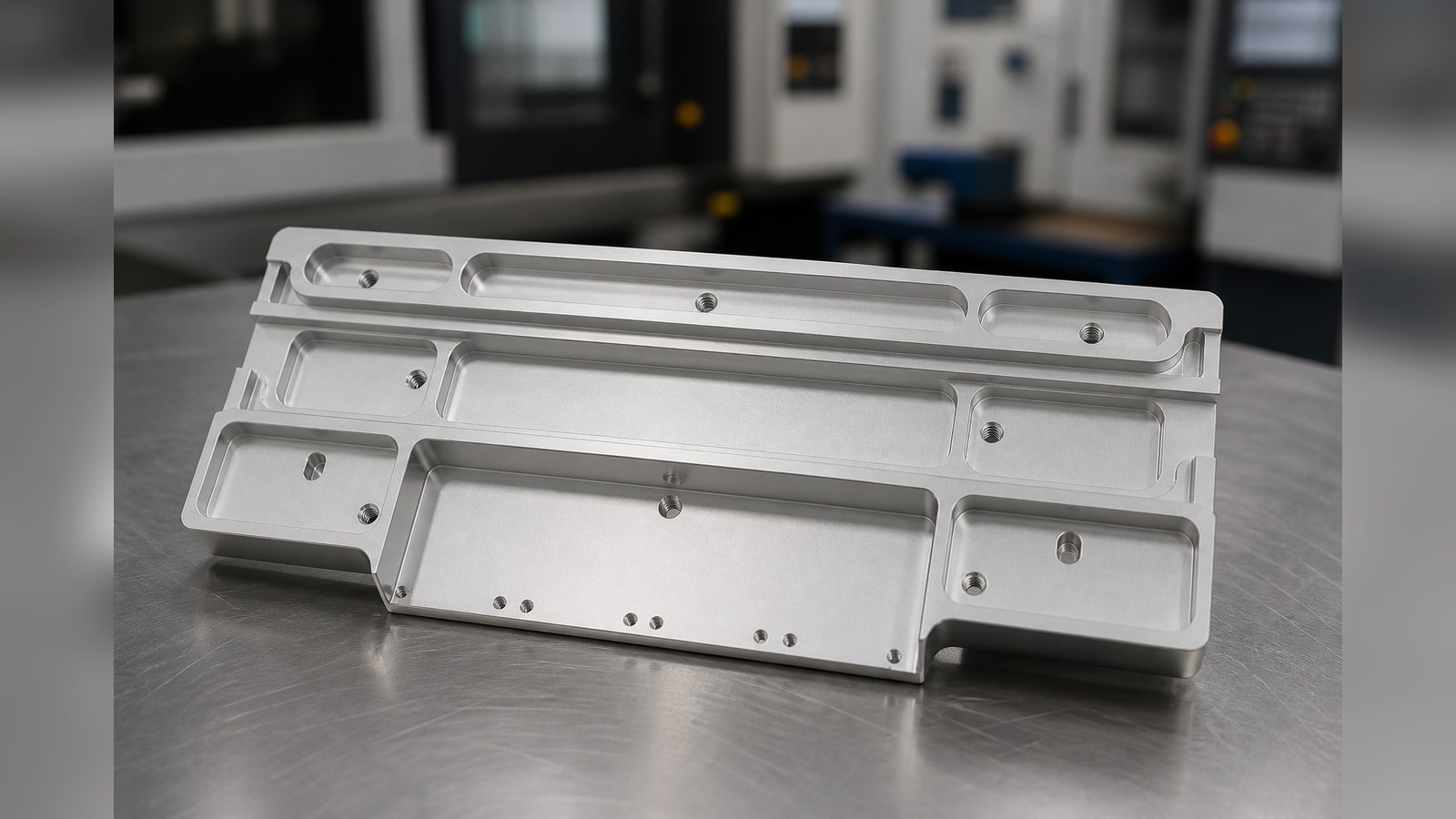

1. AL6061-T6长条薄壁滑道零件实拍风格，展示长槽、台阶和安装孔，干净加工台背景，无文字与品牌。
